規格
| 下載: | 52 |

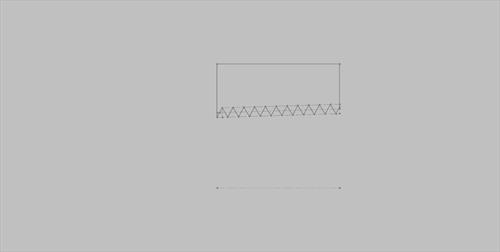

| 描述: | 2D block for making a revolved cut of a 1" NPT external thread. Just insert the block on your sketch, line up the axis with your tube axis, and the endpoint with the tube endface and you got it! If you want to get fancy you could probably use it to generate a true helical thread also. |
|
